AD8628ARZ-REEL7 Precision Amplifiers SOIC-8 Analog Devices Inc

Product Categories

HK NeoChip Technology Limited

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Brand Name : ADI

Model Number : AD8628ARZ-REEL7

Payment Terms : T/T

Price : 1.45u

Serial Interfaces : I²C, PMBus

Clock Rate : 44MHz

Data Interface : Parallel

Switch Circuit : SPDT

Data Converters : A/D 10x16b; D/A 1x12b, 2x16b

Amplifier Type : Differential

Number Of Outputs : 1

Topology : Buck

Digikey Programmable : Not Verified

Mfr : Analog Devices Inc./Maxim Integrated

Input Voltage Range : -0.3V to VDD+0.3V

Architecture : Quad-Switch

Reference Type : External

Number Of Circuits : 4

Contact Now

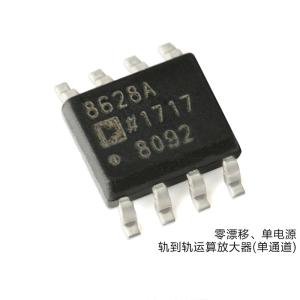

AD8628ARZ-REEL7 Precision Amplifiers SOIC-8 Analog Devices Inc

Manufacturer:	Analog Devices Inc.
Product Category:	Precision Amplifiers
RoHS:	Details
Number of Channels:	1 Channel
GBP - Gain Bandwidth Product:	2.5 MHz
SR - Slew Rate:	1 V/us
Vos - Input Offset Voltage:	1 uV
Ib - Input Bias Current:	100 pA
Supply Voltage - Max:	6 V, +/- 2.5 V
Supply Voltage - Min:	2.7 V, +/- 1.35 V
Operating Supply Current:	1.1 mA
Output Current per Channel:	30 mA
CMRR - Common Mode Rejection Ratio:	140 dB
en - Input Voltage Noise Density:	22 nV/sqrt Hz
Package / Case:	SOIC-8
Mounting Style:	SMD/SMT
Shutdown:	No Shutdown
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 125 C
Series:	AD8628
Packaging:	Reel
Packaging:	Cut Tape
Brand:	Analog Devices
Height:	1.5 mm (Max)
Length:	5 mm (Max)
Maximum Dual Supply Voltage:	+/- 2.5 V
Minimum Dual Supply Voltage:	+/- 1.35 V
Operating Supply Voltage:	2.7 V to 6 V
Product:	Precision Amplifiers
Product Type:	Precision Amplifiers
PSRR - Power Supply Rejection Ratio:	130 dB
	1000
Subcategory:	Amplifier ICs
Type:	Chopper Stabilization
Voltage Gain dB:	145 dB
Width:	4 mm (Max)
Unit Weight:	0.019048 oz
